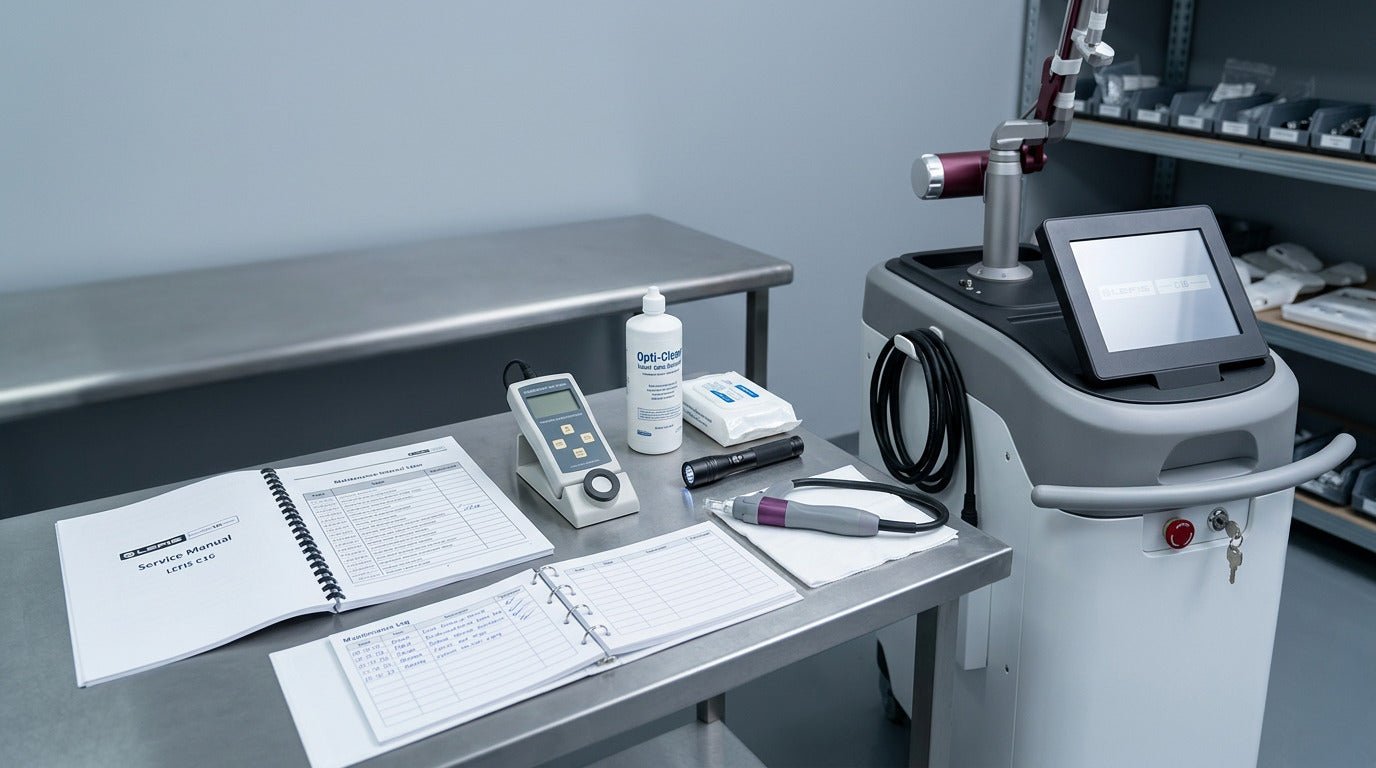

Picosecond Laser Machine Maintenance: Optics, Water, Handpiece and Energy Output Testing

Picosecond laser machine maintenance is about output stability, not just a clean casing. Four things determine whether the platform performs the same today as it did on day one: optical cleanliness, cooling and water-flow behaviour, handpiece connection health, and measured energy at the treatment window. A clean exterior does not prove any of them. This guide covers what operators can inspect, where technician service begins, and the warning signs that mean the machine should come out of service.

Quick answer: What does daily picosecond laser maintenance actually cover?

Operators inspect accessible surfaces and warnings; technicians service the internal system. Daily checks cover the treatment window, handpiece housing, cable and connector, coolant status, error log and boot warnings. Anything that requires opening the chassis, realigning internal optics, adjusting calibration, refilling a sealed cooling loop or touching high-voltage components is technician work. Exact intervals, approved cleaning agents and approved coolants come from the model manual, not a generic blog.

How to use this guide

The checks below are a framework for technicians and clinic operators running professional picosecond laser machines in daily use. They do not replace the model-specific IFU or service manual — apply the interval and approved materials from the exact model's documentation.

Picosecond Laser Machine Maintenance Overview

The table below matches each maintenance area to an operator-level check, a measurement or service-level check, and the finding that should stop use immediately. Severity is single-item — one Stop-use condition removes the machine from service, regardless of any checks that pass.

MAINTENANCE OVERVIEW — WHAT TO CHECK AND WHEN TO STOP

MAINTENANCE AREA	OPERATOR CHECK	MEASUREMENT OR SERVICE CHECK	STOP-USE TRIGGER
Optical window	Cleanliness, chips, residue, coating haze	Beam transmission / calibrated test	Crack, burn mark or coating damage
Water system	Reservoir status, leaks, flow warning	Flow calibration and cooling performance	Low-flow alarm or visible coolant leak
Handpiece and cable	Housing, cable, connector, strain relief	Measured output vs baseline	Intermittent firing or damaged connector
Energy output	Repeatable set-point behaviour	Calibrated energy-meter test	Unexplained unstable output
Spot profile	Gross visual uniformity	Beam-profile test	Hotspot or severe asymmetry
Cooling	Temperature and warning status	Warm-system stability test	Repeated overtemperature or protective shutdown
Records	Log warnings and daily maintenance	Calibration and service review	Repeated unresolved fault

Actual intervals, approved cleaning agents, approved coolants and calibration tolerances come from the model-specific service manual. A finding in the Stop-use column overrides any combined count of items that pass.

Operator Maintenance vs Technician Service

The single most important distinction in picosecond maintenance is which tasks belong to the operator and which belong to a manufacturer-authorised technician. Confusing the two voids warranty, damages sensitive optics or exposes the operator to high-voltage hazards.

OPERATOR MAINTENANCE	TECHNICIAN SERVICE
Accessible surfaces	Internal systems
Visual checks	Instrumented diagnosis
Approved routine cleaning	Alignment and calibration
Log review	Component replacement
No housing disassembly	Authorised internal access

Daily Pre-Opening Picosecond Laser Checklist

Before the first treatment of the day, work through the room, the main unit and the handpiece — then boot the system and read what it tells you.

• Room: dust, ventilation, ambient temperature, water near the unit, unobstructed vents
• Main unit: casing, power cord, key/interlock state, obvious damage, indicator lamps
• Handpiece: housing integrity, window cleanliness, cable condition, connector seating
• Startup: boot errors, cooling warnings, flow warnings, handpiece recognition, abnormal fan or pump noise

Optical Window Inspection vs Internal Optics Service

The accessible treatment window is an operator inspection item. Internal optics — mirrors, lenses, articulated-arm optics, cavity components, wavelength-conversion optics — are technician-level.

Treatment window inspection

Look for dust, fingerprints, residue, haze, carbonised debris, chips, scratches and coating discolouration. Approved cleaning follows the model's procedure with the manufacturer's specified materials. Visible physical damage means the handpiece is quarantined until service.

ACCESSIBLE OPTICAL WINDOW	INTERNAL OPTICAL TRAIN
Operator may inspect	Technician-level
Approved cleaning where the manual permits	Alignment is sensitive to touch
Contamination is usually visible	Contamination is often hidden
Replace or service if damaged	Requires specialist access

Dirty optic vs damaged optic

A dirty optic has surface contamination and often responds to approved cleaning. A damaged optic has a physical defect — chip, crack, burn mark, coating failure or permanent haze — that cleaning cannot fix. The two need completely different responses.

DIRTY OPTIC	DAMAGED OPTIC
Surface contamination	Physical or coating damage
May respond to approved cleaning	Usually requires replacement or service
Reduces transmission	Can distort or concentrate energy
Inspect before treatment	Stop use if integrity is uncertain

Cleaning Limits: What Operators Should and Should Not Clean

Cleaning products are not universal across picosecond platforms. What is safe for one model's coating can strip another. Follow the model's documented list of approved products; do not import a percentage or procedure from a general blog article.

Approved cleaning practice

Manufacturer-approved cleaning product only. Lint-free materials where the manual specifies. System powered down. Minimum liquid — never enough to pool at a seam or enter a connector. If the manual is silent, escalate to technical support rather than improvise.

GENERIC CLEANER	MANUFACTURER-APPROVED CLEANER
May attack coatings	Compatibility is specified
Leaves unknown residue	Follows a documented procedure
May void warranty	Supports the maintenance record

Water Cooling Maintenance: Level, Quality and Flow

A full reservoir does not prove that coolant is moving through the loop at the required rate.

Water level vs water flow

The level is static — the operator can see it. Flow is dynamic and depends on pump health, tubing integrity, filter condition and the absence of air in the loop. A machine can show the correct level and still run with weak flow, and that gap is where thermal derating and unexplained output loss begin.

CORRECT WATER LEVEL	HEALTHY CIRCULATION
Reservoir contains sufficient coolant	Coolant moves at the required rate
Easy visual check	May require sensor or service measurement
Does not prove pump health	Indicates thermal transport
Does not rule out a blockage	More relevant to cooling performance

Water quality and flow indicators

Coolant type is model-specific — the exact coolant is defined in the machine's manual. During daily checks, look for discolouration, particulates, biological growth or scale in any accessible sight line, and note any repeated flow alarm or unusual pump noise.

Coolant Change and Filter or Vent Maintenance

Coolant replacement is only an operator task if the model manual permits it. Otherwise it is technician-level. There is no universal change interval that applies to every picosecond platform.

Filter vs fan problem

A dirty filter restricts airflow into the machine; a failing fan reduces the airflow the machine can produce. Both cause overtemperature warnings but need different responses. A restricted intake is often visually obvious on an accessible filter; a fan problem usually comes with unusual noise, cycling or stoppage and requires service-level access.

DIRTY FILTER	FAN PROBLEM
Restricts intake airflow	Reduces airflow generation
Often visually obvious	May involve noise or stoppage
Operator may inspect accessible filter	Replacement usually service-level

The LEFIS equipment maintenance guide covers daily surface and cable checks, weekly water-level and probe checks, and periodic vent and software checks — model-specific picosecond intervals still come from the exact machine manual.

Handpiece, Cable and Connector Inspection

The handpiece takes the most physical stress in daily use. Cable and connector faults are among the most common causes of intermittent output that operators mistake for laser-source failure.

What to inspect

• Handpiece housing: cracks, loose parts, impact damage
• Cable or articulated arm: strain, kinks, tight bends, loose joints, abnormal resistance
• Connector: bent pins, contamination, looseness, heat discolouration, intermittent recognition

STABLE CONNECTION	INTERMITTENT FAULT
Consistent handpiece recognition	Dropouts during a session
No sensitivity to cable movement	Fault changes when the cable is moved
No connector heating	Possible resistance or poor contact
Consistent output	Unstable firing or output

Handpiece connection vs optical alignment

The handpiece has three things that must all be correct: electrical or communication connection to the main unit, mechanical attachment, and optical alignment inside. A machine can recognise the handpiece correctly and still require optical service. Recognition is not proof of optical health.

Cold-Start Check vs Warm-System Check

A cold-start check verifies boot, initial error codes, handpiece recognition and initial cooling status. A warm-system check verifies output stability under real operating load — where thermal drift, coolant weakness and intermittent alignment issues appear.

COLD-START CHECK	WARM-SYSTEM CHECK
Detects startup faults	Detects thermal faults
Low accumulated heat	Real operating load
May show normal energy	Can reveal drift
Necessary	Not sufficient alone

The C19 laser system uses combined liquid and forced-air cooling, which makes warm-system stability a more meaningful check for that platform than a cold-start reading alone. The same principle applies to any picosecond system: verify measured output after a documented warm-up interval, not only at first firing.

Displayed Energy vs Measured Energy Output

The energy on the console is a commanded setpoint against stored calibration. It is not a physical measurement of what leaves the treatment window. Maintenance requires both — but only one is evidence.

DISPLAYED SETTING	MEASURED OUTPUT
Commanded value	Physical result
Useful during treatment setup	Useful for verification
May remain stable despite drift	Can reveal output change
Not a calibration certificate	Requires calibrated test equipment

How to structure an energy output test

Hold every variable constant: wavelength, spot size, pulse mode, nominal energy, repetition rate, warm-up state and instrument. Take a first reading, then repeated readings; record average, variation and a second measurement after operating load.

Do not compare different spot sizes, wavelengths, pulse modes, cold-vs-warm readings or different instruments. Comparing unlike conditions is the most common way a real drift gets missed. Record every test: date, technician, machine serial, handpiece, meter serial and calibration, conditions, result and action.

SINGLE ENERGY READING	ENERGY STABILITY TEST
Shows one pulse or event	Shows variation across pulses
Quick	More diagnostic
Can miss intermittent problems	Reveals drift
Weak evidence for trend analysis	Better maintenance baseline

Spot Size vs Spot Uniformity

A picosecond system can produce a spot of the correct nominal diameter and still deliver energy unevenly. Uniformity — shape, centre-to-edge distribution, absence of hotspots — is a separate maintenance property.

CORRECT SPOT DIAMETER	CORRECT SPOT UNIFORMITY
Size is within specification	Energy distribution is acceptable
Does not prove beam quality	Addresses distribution
Easy to visually estimate	Best confirmed instrumentally
Can coexist with a hotspot	Detects asymmetry and hotspot issues

Visual spot check vs beam-profile test

A visual check on a target card is useful for gross shape and centring. It cannot quantify uniformity or detect a hotspot small enough to matter. Where uniformity is in doubt, a beam-profiler measurement is the evidence, not a burn-paper mark. The picosecond laser buyer's guide covers the same distinction in a procurement context.

Calibration Check vs Calibration Adjustment

Comparing displayed output to measured output with documented tolerance is a check. Changing the stored calibration to align them is an adjustment — a different operation that alters how the system responds thereafter.

CALIBRATION VERIFICATION	CALIBRATION ADJUSTMENT
Confirms current performance	Changes system calibration
Can trigger service	Technician-controlled only
Should be documented	Requires authorisation and traceable equipment
Does not alter the device	Alters device response

Calibration intervals are not universal. Do not assume an annual, monthly or specific interval borrowed from a competing product. The model's manual, the local regulatory environment and the machine's service history define the correct interval.

Maintenance Logs vs Memory-Based Maintenance

A worthwhile picosecond maintenance programme runs on written records. Five logs to keep current: an energy log (wavelength, spot size, set energy, measured energy, variation), a cooling log (coolant status, warnings, service dates), an optical-inspection log (contamination, damage, cleaning, replacements), an error log (code, conditions, recurrence, resolution) and a service log (technician, parts, calibration, test results). Recurring codes and creeping variation only become visible when written history exists.

Daily, Weekly, Monthly and Manufacturer-Interval Maintenance

A framework only. Actual intervals — coolant, cleaning agents, internal service — come from the model manual.

MAINTENANCE INTERVAL FRAMEWORK

INTERVAL	FOCUS	EXAMPLES
Before each day	Readiness	Treatment window, handpiece, cable, warnings on boot
After treatment / end of day	Cleaning and storage	Approved surface cleaning, correct shutdown, log any warnings
Weekly	Trend inspection	Water status, accessible filters, review of error log and energy log
Monthly	Deeper review	Recurring errors, wear patterns, energy trend against baseline
Manufacturer interval	Professional service	Calibration, internal cooling, internal optics, alignment

Cleaning is not preventive maintenance. Cleaning removes contamination; preventive maintenance finds wear and drift before failure. Both are needed, on different intervals.

Warning Signs That Require Technical Service

The signs below are associated with real service issues and should trigger escalation, not repeated attempts to clear the warning and continue treatment.

• Repeated water-flow alarm or overtemperature warning that does not clear after operator checks
• Unexplained output drop or pulse-to-pulse variation beyond documented tolerance
• New hotspot, asymmetry or clipping in the beam
• Cracked, chipped or burned optical window
• Intermittent handpiece recognition or intermittent firing
• Unusual pump or fan noise, cycling or stoppage
• Coolant leak, burning smell, smoke or internal condensation
• Persistent startup error after documented restart

Monitor vs stop use

MONITOR AND DOCUMENT	STOP USE AND ESCALATE
Minor cosmetic wear	Cracked or burned optical surface
Routine maintenance approaching	Coolant leak
Stable non-critical warning history	Repeated flow or temperature fault
Scheduled filter service	Burning smell or smoke
Stable output within documented limits	Unexplained output instability

What Not to Do During Picosecond Laser Maintenance

Every action below voids warranty, damages sensitive optics, exposes the operator to hazards or masks a real fault.

• Open the laser cavity, realign internal optics or replace internal high-voltage components without qualified service
• Apply generic solvents, unapproved cleaners or abrasive materials to optical surfaces
• Bypass or override cooling, flow or temperature interlocks
• Refill a sealed cooling loop unless the model manual permits it and specifies the coolant
• Reset stored calibration to hide drift
• Continue firing after repeated thermal alarms
• Assume a visibly clean window proves correct optical output

C16 vs C19: Maintenance Questions to Ask the Manufacturer

The two LEFIS platforms show how maintenance questions should be framed against a specific model's manual. Both use Q-switched Nd:YAG architecture and share broad principles, but coolant, service intervals and operator-serviceable items are decided by the manufacturer.

C16 maintenance questions

The C16 picosecond laser system page references closed-loop cooling, 2–10 mm adjustable spots and real-time monitoring. Verify with the manufacturer: is the coolant loop user-serviceable or sealed? Which accessible optics can operators clean, and how? What energy-check interval does the manual specify? Which error codes require engineering support?

C19 maintenance questions

The C19 laser system page lists 2–10 mm spots, up to 10 Hz and combined liquid-plus-forced-air cooling. Verify with the manufacturer: what coolant is approved? What flow and temperature limits apply? Which parts of the delivery system are operator-serviceable? What output-stability test is the standard post-service verification?

What to Send Technical Support

When a maintenance issue escalates, send technical support the full picture in one message: machine model and serial; software version; handpiece identification; wavelength, spot size, energy and repetition rate in use; error code and timestamp; coolant and temperature status; whether the fault appears cold or after warm-up; photos of any accessible optic; a video of the fault where possible; recent maintenance history; and the most recent measured energy result with meter identity and calibration date. Escalate through the picosecond laser maintenance support page — a complete first message usually resolves a service ticket in one exchange.

Maintenance Manual vs Generic Online Advice

The hierarchy is: model-specific manufacturer manual first, then authorised service documentation, then local regulatory requirements, then trained technical support. A generic blog cannot establish the correct coolant, cleaning solvent, calibration tolerance, filter interval, service interval or internal-access procedure for a specific model. Any decision that touches those variables comes from the manual or from technical support.

Final Picosecond Laser Machine Maintenance Checklist

Before returning the machine to service after any maintenance activity, confirm the operator or technician has:

• inspected exterior condition and the accessible optical window, and checked for chips, haze, burn marks and coating damage
• inspected handpiece housing, cable or articulated arm, and connector security
• reviewed coolant status, water level, flow and temperature alarms, filters and vents
• completed the documented startup check and compared cold and warm behaviour
• recorded energy-test conditions and measured output where the plan requires it
• reviewed pulse-to-pulse stability, spot shape and calibration history
• recorded all cleaning and service actions in the maintenance log
• stopped use for any serious optical, cooling or electrical warning
• escalated unresolved output drift or repeated warnings to technical support

Request the Maintenance Schedule and Technical Support Package

Picosecond laser machine maintenance is not just cleaning. Group the work into optics, cooling, delivery system and measured output; verify warm-system behaviour rather than cold-start alone; keep the model manual on top of any generic advice; and document everything that touches the machine. Stop-use signals always override any counter-argument.

Compare the LEFIS picosecond laser systems and use the laser maintenance and technical support page to request the model-specific maintenance schedule, approved cleaning agents and coolant, service-interval documentation and the technical support package. Confirm scope and response terms in writing before relying on any interval claim.

FAQs

What is the most important part of picosecond laser machine maintenance?

Consistent measured output at the treatment window. A clean casing, full reservoir and booting console are necessary conditions, but none proves the machine delivers the energy the display reports. Optical cleanliness, healthy cooling and connection integrity all exist to protect that measured output.

How should a picosecond laser optical window be inspected?

Powered down, in good light, with the manufacturer's documented procedure. Look for dust, residue, haze, chips, scratches and coating discolouration. Approved cleaning uses manufacturer-specified materials only. Any visible physical damage means the handpiece is quarantined for service.

How often should the cooling water be checked?

Visually, every day, as part of the startup check — level, colour, particulates and any leak. Full replacement interval, approved coolant and internal cooling-system service come from the model manual. Repeated flow warnings and temperature rises beyond the manual's stated range are escalation signals.

How do you know whether a picosecond laser is losing energy?

Measured output at the treatment window against a documented baseline, taken under the same wavelength, spot size, repetition rate and warm-up state. Subjective impressions are a signal to test, not a diagnosis. Displayed energy is a commanded value and cannot confirm true output.

How is picosecond laser energy output tested?

With a calibrated optical-power or pulse-energy meter appropriate for the wavelength, at a defined spot size and repetition rate, with the machine warmed to typical use. Take multiple readings, record average and variation, repeat after sustained load. Log meter identity, calibration date and conditions.

What causes an uneven laser spot?

Common associations: dirty accessible optics, damage to the treatment window, alignment issues in the delivery system, or an issue in the articulated arm or handpiece optics. A hotspot, asymmetry or clipping is a service signal — document and escalate, do not compensate through patient-side technique.

When does a picosecond laser need calibration?

When measured-vs-displayed comparison exceeds the manual's tolerance; after any service that touches the optical path, source or sensor; and at the interval the manufacturer specifies. Do not assume an annual schedule from another platform. Adjustment is technician-level; verification is the operator-level task.

What should I do if the laser shows a water-flow warning?

Stop treatment. Complete the manual's operator-level checks — coolant level, visible flow indicator, tubing and any accessible filter. Do not open a sealed loop, add generic coolant or bypass the alarm. If the warning does not clear, escalate with model, serial, error code and coolant status.

Why might a picosecond laser stop firing?

Common causes: handpiece recognition faults (cable or connector), an incompletely closed safety interlock, cooling or flow error triggering protective derating, an unresolved error code from a previous session, or a settings issue. Repeated firing changes with cable movement points to a handpiece cable or connector fault.

When should a picosecond laser machine be taken out of service?

Immediately for coolant leak, cracked or burned optical window, exposed cable conductor, uncontrolled firing, safety interlock failure, burning smell, smoke, internal condensation or repeated thermal shutdown after cooling. A single Critical finding overrides any combined count of items that pass.

Sources

1. Laser Device Maintenance for Aesthetic Clinics  ·  Candela Medical
2. Medical Equipment Maintenance Programme Overview  ·  World Health Organization
3. Laser Products and Instruments  ·  U.S. Food & Drug Administration
4. Performance Standards for Light-Emitting Products (21 CFR 1040.10)  ·  U.S. Food & Drug Administration
5. IEC 60825-1 — Safety of Laser Products  ·  International Electrotechnical Commission
6. ISO 13485 — Medical Devices Quality Management Systems  ·  International Organization for Standardization
